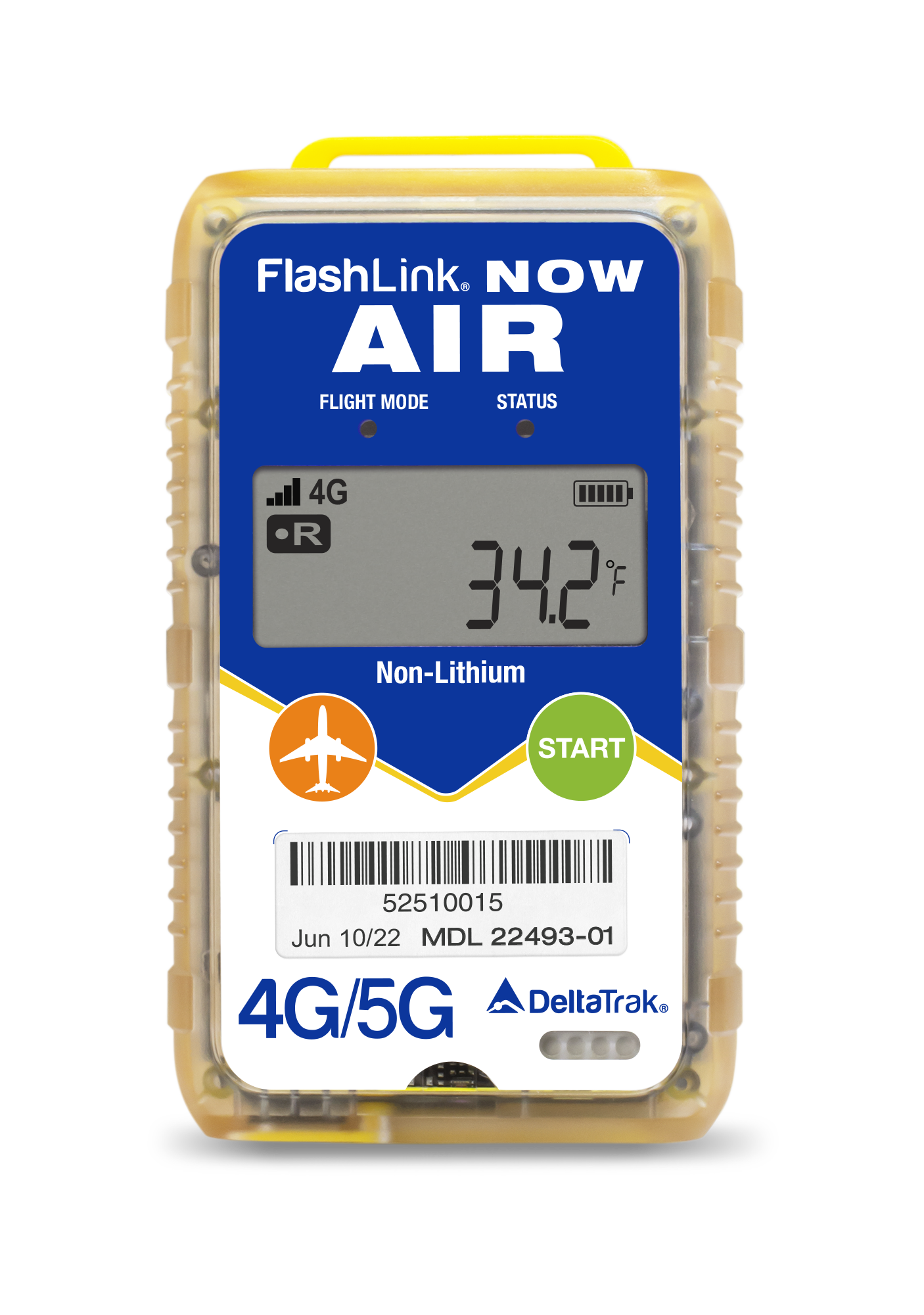

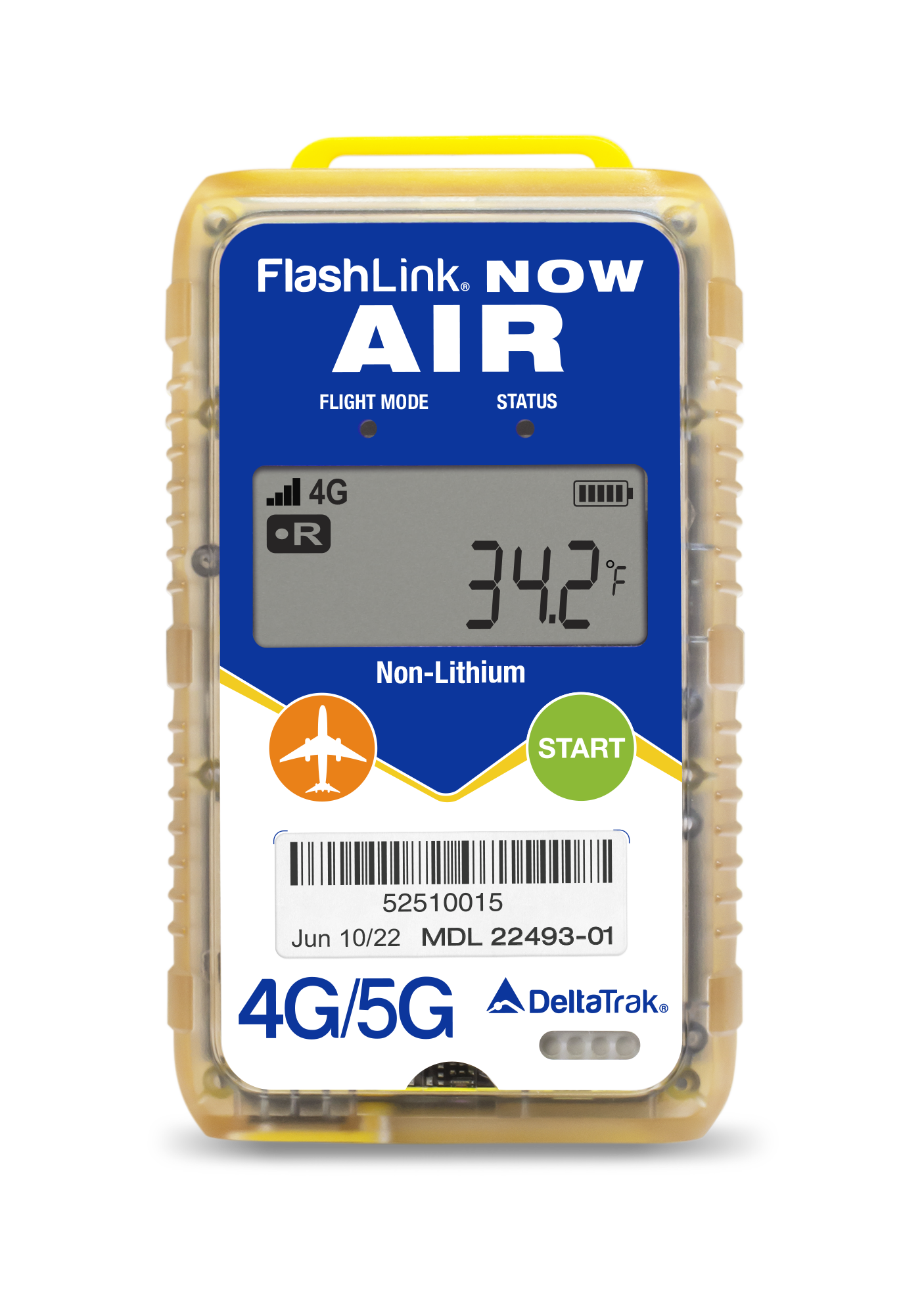

FlashLink® AIR 4G/5G 实时传输中记录仪
Model: 22493-01
MEASUREMENT RANGE
FEATURES
- 非锂电池
- 下一代全球蜂窝通信实时记录仪，配备LCD屏幕，使用4G/5G LTE并支持2G备份
- 监控位置、温度、湿度、光照、冲击和气压
- 温度以°C显示
- 主动管理货物位置和条件，以减少因温度异常导致的产品损失风险
- FlashTrak云服务平台提供不同级别的访问权限，以优化用户体验并支持API集成到客户系统中。FlashTrak接收程序允许发货人自定义警报和运输条件的访问
- 如果GSM网络不可用，提供USB选项下载PDF旅行数据
- 光传感器提醒您未计划的安全访问，从而减少并避免运输过程中潜在的产品盗窃
- 海运跟踪服务选项确保访问不同模式的集成供应链数据
APPLICATIONS
出口货物实时监控，行程时长可达15天
FlashLink AIR 4G/5G 实时运输记录仪采用最新技术，保护国内和出口的温度敏感产品运输。DeltaTrak的实时设备提供了发货人和收货人所需的数据，使其能够在温度异常发生时立即采取行动。用户通过一个设备即可捕捉多种类型的传感器数据，包括位置、温度、湿度、冲击、光照和气压。
FlashLink AIR 具备多个增强功能，为访问数据提供了新的选项，并提高了易用性。新增的LCD屏幕使用户能够查看存储在设备内存中的旅行数据。更宽的温度测量范围（-30°C 至 70°C，-22°F 至 158°F）可用于监控具有不同需求的货物。
| 特性 | 规格 |
|---|---|
| 温度范围 | -30°C 至 70°C (-22°F 至 158°F) |
| 温度准确度 | ±0.5°C 从 -10°C 到 45°C (±0.9°F 从 14°F 到 113°F)， ±1.0°C (2.0°F) 其他 |
| 温度分辨率 | 0.1°C/°F |
| 温度传感器类型 | 内部数字温度传感器 (NIST可追溯) |
| 湿度范围 | 5% 至 95% RH |
| 湿度准确度 | ±3% 从 20% 到 80% RH，±5% 其他 |
| 光传感器范围 | 0 至 52000 lux |
| 光照检测准确度 | 0.01 lux |
| 冲击传感器 | 0-8g，高度：5-10cm |
| 使用类型 | 一次性使用 |
| 数据容量 | 最大 28800 次读取 |
| 记录间隔 | 5分钟 |
| 数据上传间隔 | 15分钟 |
| 旅行持续时间 | 15天（基于记录和上传间隔） |
| 蜂窝网络 | 全球LTE Cat-1 4G/5G网络，支持2G回退 |
| SIM卡 | 内部嵌入式（全球数据漫游） |
| 电源 | 非锂电池，镍氢电池，符合UN38.3标准 |
| 电池保质期 | 6个月 |
| 记录仪尺寸 | 4.05英寸 x 2.41英寸 x 1.18英寸 (103mm x 61.3mm x 30mm) |
| 重量 | 4.9盎司 (140克) |
| 防水等级 | IP64 |
| 认证 | FCC, CE, UN38.3, RTCA/DO-160G, RoHS, NIST可追溯温度准确度, WEEE |
| PDF报告备份 | Micro USB至USB线下载完整的旅行PDF报告 |
Each FlashLink® AIR 4G/5G 实时运输记录仪都安装在一个明亮的绿色运输卡上，使得货物到达时容易找到。卡片上有一个区域用于记录运输信息，并且配有一个可剥离的条形码标签，可以附加到提单或其他运输文件上，以确保可追溯性。它还提供了发货人和收货人的简单2步操作说明，支持英文和西班牙文。
用户可以扫描二维码快速在线访问更多产品信息。
闪光轨迹
FlashTrak 是一种领先的供应链可视性实时云服务，基于现代技术构建，可改变您的供应链管理。使用我们专用的 FlashTrak 门户网站访问世界任何地方的数据，实时下载、打印或共享可操作的数据。
FlashTrak Connect 移动应用程序
FlashTrak Connect 是一款供应链应用程序，提供更多查看货运数据的选项。托运人和收货人使用该应用程序可以方便地访问由 DeltaTrak 数据记录器监控的货物信息。
